Plastic Packaging Heat Seal Tester ASTM F2029 Lab Heat Sealer
A heat sealer is an indispensable machine employed to seal products
and packaging made from thermoplastic materials. Heat sealing, a
process involving the fusion of thermoplastics through the
application of heat and pressure, is crucial in various industries
including packaging, food, medicine, and beverages. Utilizing heat
sealers ensures the integrity and safety of the packaged products.
Plastic Packaging Heat Seal Tester Introduction

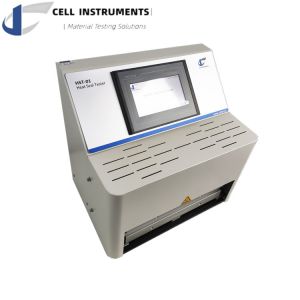

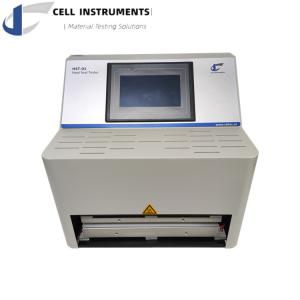

Cell Instruments HST-01 Heat Seal Tester is meticulously designed
for laboratory use, offering a compact solution for assessing the
heat sealability of surfaces, sealant layers in films, laminates,
polymers, and composites. Understanding the importance of heat seal
testing in maintaining product quality, our heat seal tester
provides precise control over key parameters: time, temperature,
and pressure.
Importance of Heat Seal Tester
In industries reliant on packaging, such as food, beverage, and
pharmaceuticals, the integrity of heat-sealed plastic films is
paramount. Heat seal testers play a pivotal role in ensuring that
these materials meet rigorous standards for both safety and
efficacy. By accurately simulating real-world sealing conditions,
heat seal testers aid in evaluating the strength and durability of
seals, thus preventing potential leaks or contamination.
Key Features of the HST-01 Heat Seal Tester
The HST-01 stands out for its stability and precision, controlled
by a PLC system and operated through an intuitive HMI touch screen.
The upper and lower components, constructed from aluminum, minimize
heat loss during sealing, ensuring consistent temperature.
The P.I.D. temperature controller guarantees precise temperature
regulation, while the proximity sensor facilitates synchronized
seal initiation.
Safety features such as an anti-scald front cover prioritize user
safety.
Compliance with ASTM Standards
Cell Instruments HST-01 Heat Seal Tester adheres to ASTM
F2029-16(2021) standards, ensuring reliable and consistent results
in determining the heat sealability of flexible barrier materials,
as measured by seal strength.
Key Features of the HST-01 Heat Seal Tester
- PLC Control: Our heat seal tester is PLC controlled, ensuring
industrial-level stability and precise operation. The intuitive HMI
touch screen interface facilitates user-friendly navigation.
- Aluminum Construction: Both upper and lower components are crafted
from aluminum, minimizing heat loss during sealing and ensuring
uniform temperature distribution.
- P.I.D. Temperature Controller: Equipped with a first-class P.I.D.
temperature controller, our heat seal tester offers precise
temperature regulation, guaranteeing efficient heating and sealing.
- Accurate Timing: Synchronized seal initiation is achieved through
accurate timing combined with a proximity sensor, enhancing
efficiency and reproducibility.
- Uniform Pressure: The sealing bar, guided in three directions,
ensures uniform pressure distribution across the sample, optimizing
seal strength.
- Safety Features: User safety is paramount, with features such as an
anti-scald front cover and manual or foot switch initiation of
tests.
- Customizable Seal Jaws: Tailored to your specific requirements, our
heat seal tester offers customizable seal jaws in terms of
dimensions, shapes, and patterns.
- Optional Functionality: An RS 232 COM Port and optional computer
software provide additional functionalities, enhancing versatility
and data management capabilities.
Test Process
During testing, a sample is placed between two parallel heated
sealing jaws, and the required temperature is allowed to reach
equilibrium. The upper seal jaw, driven by a gas cylinder, exerts a
specific pressure on the sample for a predetermined duration. Upon
completion of the sealing time, the upper sealing jaw returns to
its original position, concluding the heat sealability testing
process.
Technical Specifications
| Sealing Temp. | Ambient~300℃ |
| Deviation | ±0.2℃ |
| Sealing Time | 0.1S~9999S |
| Sealing Pressure | 0.15~0.7 MPa |
| Seal Jaws | 330*10 mm L*W |
| Gas Pressure | 0.7 MPa |
| Port Size | Ф6 mm PU Hose |
| Power | AC 220V 50Hz |
Customization Options and Additional Functionalities
Customizable seal jaws in terms of dimensions, shapes, and patterns
provide flexibility, while features like the RS 232 COM Port and
optional computer software offer enhanced functionalities, making
it a versatile solution for diverse testing needs.
Optimize your material physics testing with the HST-01 Heat Seal
Tester, a reliable choice for precise and consistent heat sealing
in various industries.
